| مكان المنشأ: | جيانغسو ، الصين |
| اسم العلامة التجارية: | SUMA or OEM |
| الحد الأدنى لكمية: | 1 |
|---|
| سرعة السباق الداخلية: | 1600-3000 دقيقة | سرعة السباق الخارجي: | 450-900 min-1 |
|---|---|---|---|
| سعة عزم الدوران: | 379-6900 نانومتر | نطاق الوزن: | 1.6-19 كجم |
| نوع التشحيم: | شحم | قطر التجويف: | 15-5x5 إلى 175-45x25 مم |
| الارتفاع أ: | 63.5-168.3 مم | الارتفاع ب: | 76.2-381 مم |
| الارتفاع ج: | 60.45-165.1 مم | البعد ه: | 1.6-3.2 مم |
| البعد و: | 28.58-228.6 مم | البعد ز: | 66.67-298.45 مم |
| البعد ك: | 13-32 ملم | البعد و: | 0.8-3.2 مم |
| عزم الدوران السحب: | 18-156 NCM | ||
| إبراز: | FSO300-700 one way clutch bearing,backstop cam clutch 379-6900 Nm torque,one way bearing with high torque,backstop cam clutch 379-6900 Nm torque,one way bearing with high torque |
||

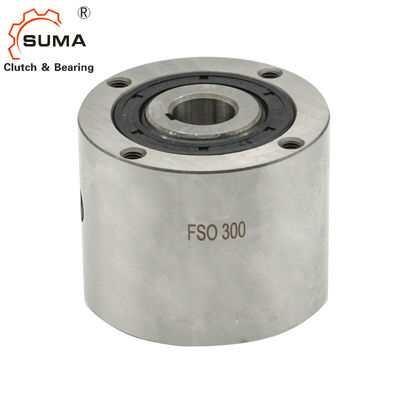

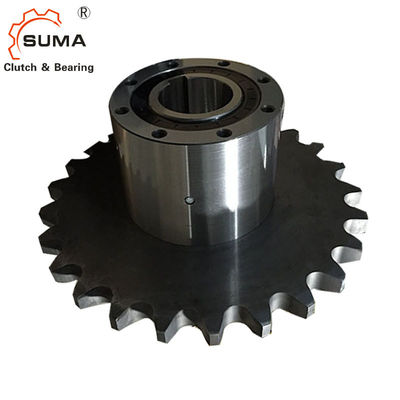

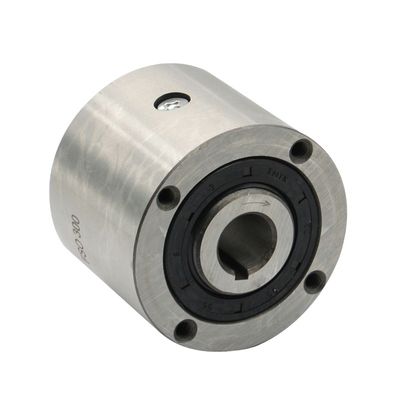

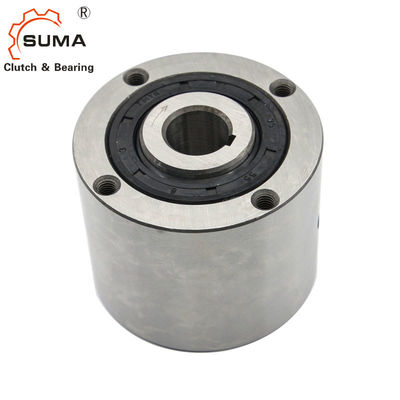

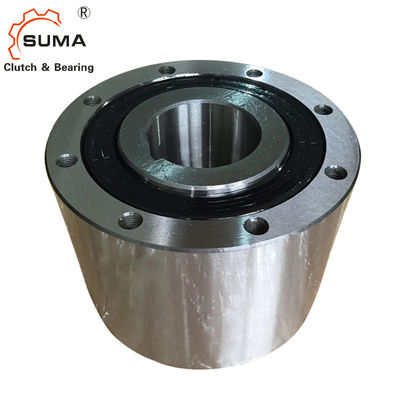

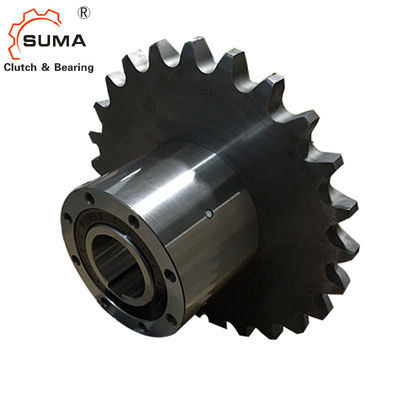

The FSO, FS, and HPI 750 to 1027 series are sprag type freewheels that are self-contained, sealed, and bearing supported, using two ball bearings. Units are delivered oil or grease lubricated according to type.
Based on Formsprag USA design, these units feature tall sprags with multi-radius active surfaces, specially engineered for large size freewheels to compensate for any eccentricity due to bearing wear.
| Type | Size | Overrunning Speeds | Weight | Torque Drag |
|---|---|---|---|---|
| FSO | 300 | 3000/900 | 18 kg | 1.6 Ncm |
| FSO-GR | 400 | 2800/850 | 27 kg | 2.7 Ncm |
| HPI | 500 | 2500/800 | 31 kg | 4.8 Ncm |
| 600 | 2200/750 | 62 kg | 8.6 Ncm | |
| 700 | 1600/450 | 156 kg | 19 Ncm |
| Type | Torque Capacity | Overrunning Speed | Weight | Drag Torque |
|---|---|---|---|---|
| 750 | 9660 Nm | 1800/650 | 38 kg | 5.08 Ncm |
| 800 | 17940 Nm | 1500/525 | 46 kg | 7.12 Ncm |
| 900 | 24408 Nm | 1350/500 | 71 kg | 8.47 Ncm |
| 1027 | 36612 Nm | 700/375 | 113 kg | 13.56 Ncm |
